Element Class Reference

an XML element. More...

#include <Element.h>

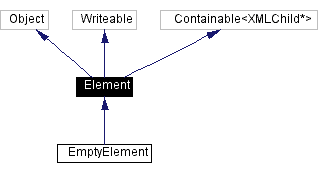

Inheritance diagram for Element:

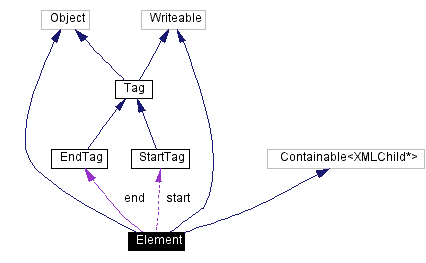

[legend]Collaboration diagram for Element:

[legend]List of all members.

Public Methods
	Element (const string &name="Element", const StringMap &atts=StringMap(), const ChildList &children=ChildList())
	constructor. More...
Inspectors
return various values from Element
virtual string	Get (const string &att) const
virtual StartTag*	GetStartTag () const
virtual EndTag*	GetEndTag () const
virtual ChildList	GetChildren () const
virtual StringVector	GetAttributes () const
virtual StringVector	GetValues () const
virtual StringMap	GetAttributeMap () const
virtual string	GetName () const
Modifiers
change the Element's values
virtual Element	Set (const string &att, const string &val)
virtual Element	SetAttributeMap (const StringMap &newAttributeMap)
virtual Element	SetChildren (const ChildList &newChildren)
virtual Element	SetValues (const StringVector &newVals, const StringVector &newAtts=StringVector())
virtual string&	operator[] (const string &newAtt)
virtual Element	SetName (const string &newName)
Containable
methods inherited from the Containable interface
virtual void	Add (XMLChild *const &)
virtual void	Delete (XMLChild *const &)
virtual size_t	Size () const
virtual bool	IsEmpty () const
Writeable
method inherited from the Writeable interface
virtual string	ToString () const
Protected Methods
virtual void	Init (const string &newNname, const StringMap &newAtts, const ChildList &newChildren)
	Initialize a new name, attribute map, and children.
Object
methods inherited from the Object base class
Element&	Copy (const Element &rhs)
	Copy Constructor.
virtual bool	Equals (const Element &rhs) const
	operator==.
virtual void	NullifyPointers ()
	makes all member pointers initially point to NULL.
virtual void	Clear ()
	delete's all member pointers.
Protected Attributes
StartTag*	start
	for base classes like EmptyElement.
EndTag*	end

---

Detailed Description

an XML element.

An abstraction for an XML element <element foo="bar">foobar</element>

---

Constructor & Destructor Documentation

Element::Element ( const string & name = "Element", const StringMap & atts = StringMap(), const ChildList & children = ChildList() )

constructor. Parameters: name:   the Element's name atts:   a Map<string, string> of attributes and values children:   a list<XMLChild*> of child nodes this element has

---

Member Function Documentation

void Element::Add ( XMLChild *const & ) [virtual]

add a new child node to this element See also: Delete()

void Element::Delete ( XMLChild *const & ) [virtual]

delete a oldChild from the list of this element's nodes

string Element::Get ( const string & att ) const [virtual]

Get a value from the atts Map<string, string> Parameters: att:   an attribute Returns: a value corresponding to the given att

StringMap Element::GetAttributeMap ( ) const [virtual]

Returns: a Map<string, string> of the element's attributes && values See also: GetValues(), GetAttributes()

StringVector Element::GetAttributes ( ) const [virtual]

Returns: a vector<string> of the element's attributes See also: GetValues()

ChildList Element::GetChildren ( ) const [virtual]

Returns: the list of children

EndTag * Element::GetEndTag ( ) const [virtual]

Returns: the end tag

string Element::GetName ( ) const [virtual]

Returns: element's name

StartTag * Element::GetStartTag ( ) const [virtual]

Returns: the start tag

StringVector Element::GetValues ( ) const [virtual]

Returns: a vector<string> of the element's values See also: GetAttributes()

bool Element::IsEmpty ( ) const [virtual]

Returns: true || false if this element has no children

Element Element::Set ( const string & att, const string & val ) [virtual]

this does the same as element[att] = val Parameters: att:   attribute to set val:   value to set att Returns: this Element with the attribute newly set this does the same as element[att] = val; See also: operator[]

Element Element::SetAttributeMap ( const StringMap & newAttributeMap ) [virtual]

replace the current attributeMap with the given Parameters: newAttributeMap:   a new attribute map Returns: this element with the new map

Element Element::SetChildren ( const ChildList & newChildren ) [virtual]

replace the child nodes with the given list of nodes Parameters: newChildren:   new list of child nodes Returns: this element with new children

Element Element::SetName ( const string & newName ) [virtual]

assign a new name to this element Parameters: newName:   the new name Returns: this element with the new name

Element Element::SetValues ( const StringVector & newVals, const StringVector & newAtts = StringVector() ) [virtual]

basically the same as SetAttributeMap, just with more params Parameters: newVals:   the Map's "words" newAtts:   the Map's "defs" Returns: this element with the new attributes && values See also: SetAttributeMap()

size_t Element::Size ( ) const [virtual]

Returns: the number of children of this element

string Element::ToString ( ) const [virtual]

Returns: this element converted into a string Reimplemented in EmptyElement.

string & Element::operator[] ( const string & newAtt ) [virtual]

same as Set() -- sets an attributes with a given value: element[newAtt] = val; Returns: reference to the attribute See also: Set()

---

The documentation for this class was generated from the following file:

• Element.h

---
